SUL-HBV2680 /A 80W
|
|
● 5 years warranty LED: Nichia or Lumileds 3030 Driver: 5 years warranty
● 150Lm/W±5%(Nichia 3030)
|
|
|
|
|
|
|
|
|
|
|
|
Product Information |
Input voltage: |
90-305VAC/50-60 Hz |
|
CRI: |
>80 or >70 |
Power: |
80W |
|
CCT: |
3000K/4000K/5000K |
Input current: |
0.36A @220VAC |
|
Beam angle: |
60°/90°/120° |
Pf: |
>0.90 @220VAC |
|
|
|
DC output voltage: |
48V |
|
|
DC output current: |
1.5A |
|
|
|
Protection against electric shock: |
Class I |
|
|
Dimming: |
3 in 1 dimming (PWM, 1-10V, Resistor)
|
|
Typical Flux: |
11200 Lm±5% @ Ra>80 |
IP: |
IP65 |
|
|
12000Lm±5% @ Ra>70 |
LED: |
Nichia or Lumileds 3030 |
|
Efficiency: |
150Lm/W±5%(Nichia 3030) |
Driver: |
Built-in |
|
Luminaire warranty: |
5 Years @ 45℃ |
Operating temperature range: |
-40℃ ~ 45℃ |
|
Installation mode: |
Hook Mount, Pendant Mount, Bracket Mount
|
Material: |
Housing: Aluminium Lens: PMMA |
|
Finish: |
Black /Gray |
|
|
|
|
|

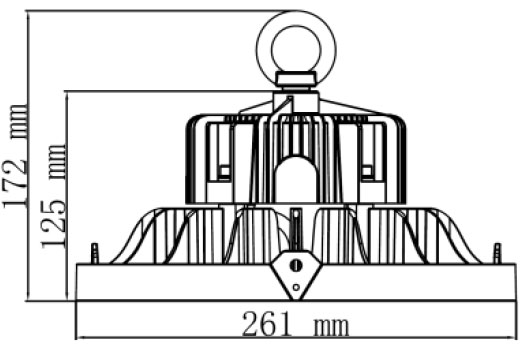

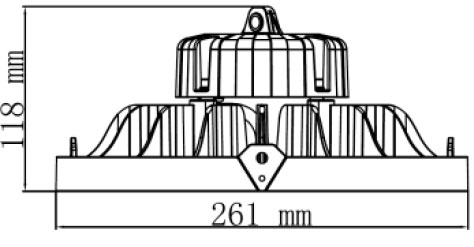

Product Size |
|
|
Installation Mode |
|
|
|
| |
