0-10V DIM Premium
 |
● Low UGR
For industrial and public places <22
For office building <19
● 5 years warranty
LED: LG 5630 L70 50000h working life
Driver: 5 years warranty
● 140-150LM/W |
|
|
|
|
| Product Information |
| Input voltage: |
120-277V/50-60 Hz |
CRI: |
>80 |
Protection against
electric shock: |
Class I |
Beam angle: |
30°/60°/90°/30°/asymmetric |
| Dimming: |
0-10V |
|
  |
| IP: |
IP20 |
|
| LED: |
LG 5630 0.5W |
|
  |
| Driver: |
Built-in |
|
| Operating temperature range: |
-20℃ ~ 45℃ |
CCT: |
3000K/4000K/5000K |
| Pf: |
0.95 |
Material: |
Housing: anodised aluminium
Driver box: steel
Lens: PMMA |
| Luminaire warranty: |
5 Years |
|
| Connection: |
WAGO Push-in Connector |
Finish: |
White/Satin Silver/Black |
| 3000K |
| NO. |
Beam |
Length |
Lumens |
Efficacy |
Power |
| SUL-LLV0617 |
30° |
0.6m |
2300Lm |
135Lm/W |
17W |
| SUL-LLV1234 |
30° |
1.2m |
4600Lm |
135Lm/W |
34W |
| SUL-LLV1552 |
30° |
1.5m |
6700Lm |
130Lm/W |
52W |
|
|
|
|
|
|
| SUL-LLV0617 |
60° |
0.6m |
2400Lm |
140Lm/W |
17W |
| SUL-LLV1234 |
60° |
1.2m |
4700Lm |
140Lm/W |
34W |
| SUL-LLV1552 |
60° |
1.5m |
7000Lm |
135Lm/W |
52W |
|
|
|
|
|
|
| SUL-LLV0617 |
90° |
0.6m |
2300Lm |
135Lm/W |
17W |
| SUL-LLV1234 |
90° |
1.2m |
4600Lm |
135Lm/W |
34W |
| SUL-LLV1552 |
90° |
1.5m |
6700Lm |
130Lm/W |
52W |
|
|
|
|
|
|
| SUL-LLV0617 |
Double symmetric |
0.6m |
2100Lm |
125Lm/W |
17W |
| SUL-LLV1234 |
Double symmetric |
1.2m |
4200Lm |
125Lm/W |
34W |
| SUL-LLV1552 |
Double symmetric |
1.5m |
6200Lm |
120Lm/W |
52W |
|
|
|
|
|
|
| 4000K/5000K |
| NO. |
Beam |
Length |
Lumens |
Efficacy |
Power |
| SUL-LLV0617 |
30° |
0.6m |
2400Lm |
140Lm/W |
17W |
| SUL-LLV1234 |
30° |
1.2m |
4700Lm |
140Lm/W |
34W |
| SUL-LLV1552 |
30° |
1.5m |
7000Lm |
135Lm/W |
52W |
|
|
|
|
|
|
| SUL-LLV0617 |
60° |
0.6m |
2500Lm |
148Lm/W |
17W |
| SUL-LLV1234 |
60° |
1.2m |
5000Lm |
148Lm/W |
34W |
| SUL-LLV1552 |
60° |
1.5m |
7300Lm |
140Lm/W |
52W |
|
|
|
|
|
|
| SUL-LLV0617 |
90° |
0.6m |
2400Lm |
140Lm/W |
17W |
| SUL-LLV1234 |
90° |
1.2m |
4700Lm |
140Lm/W |
34W |
| SUL-LLV1552 |
90° |
1.5m |
7000Lm |
135Lm/W |
52W |
|
|
|
|
|
|
| SUL-LLV0617 |
Double symmetric |
0.6m |
2200Lm |
130Lm/W |
17W |
| SUL-LLV1234 |
Double symmetric |
1.2m |
4400Lm |
130Lm/W |
34W |
| SUL-LLV1552 |
Double symmetric |
1.5m |
6500Lm |
125Lm/W |
52W |
|
|
|
|
|
|

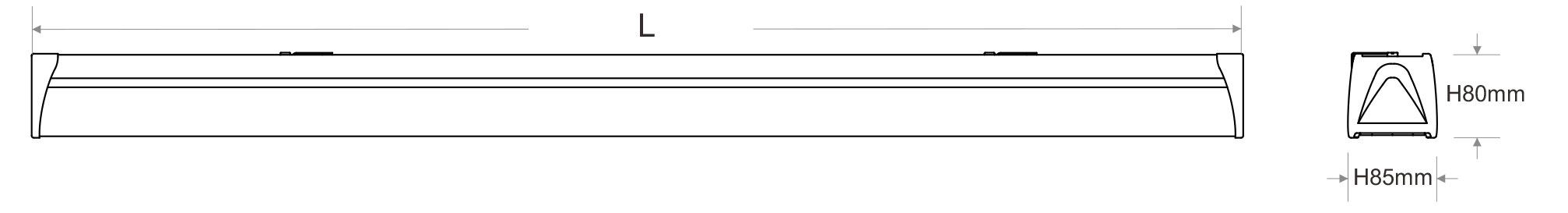

| Product Size |
| |
L |
W |
H |
| 0.6m |
582mm |
85mm |
80mm |
| 1.2m |
1155mm |
85mm |
80mm |
| 1.5m |
1440mm |
85mm |
80mm | |
