| Multi-sensor system is integrated in sensor module including daylight control and motion detection control system with 0-10V dimming device.The sensor module with their wide range and diverse detection area expands and riches light system's possible application.Mounting height varing from 2.5 meters to 15 meters could be available.High energy saving up to 80% could be achieved by using the daylight control and motion detection control system.2 options of sensors' for choice:microwave sensor or daylight and microwave sensor. |
|
|
|
|
|
|
| Microwave control system |
|
| Input voltage： |
220-240V/50-60 Hz |
|
Detection area: |
100%/75%/50%/10% |
|
Protection against
electric shock: |
Class I |
|
Hold time: |
5s/30s/90s/3min/20min/∞ |
|
| Rated load: |
400W(inductive) |
|
Stand-by period: |
0s/5s/5min/10min/30min/1h/Disable |
|
| HF system: |
5.8GHz±75MHz, ISM wave band |
|
Daylight sensor: |
2lux/5lux/10lux/25lux/50lux/100lux/Disable |
|
| Power consumption: |
≤0.5W(standby),<1W(operation) |
|
Stand-by dimming level: |
10%/20%/30%/50% |
|
| Transmitting power: |
<0.5mW |
|
Mounting height: |
15m Max Suggested installation
height:2.5-15m |
|
| Motion detection: |
0.5-3m/s |
|
|
|
|
| IP: |
20 |
|
Material： |
Housing: anodised aluminium
Lens: PC |
|
| Luminaire warranty: |
5 Years |
|
|
| Connection: |
WAGO Push-in connector |
|
Finish： |
White/Satin Silver/Black |
|
|
|
|
|
|
|

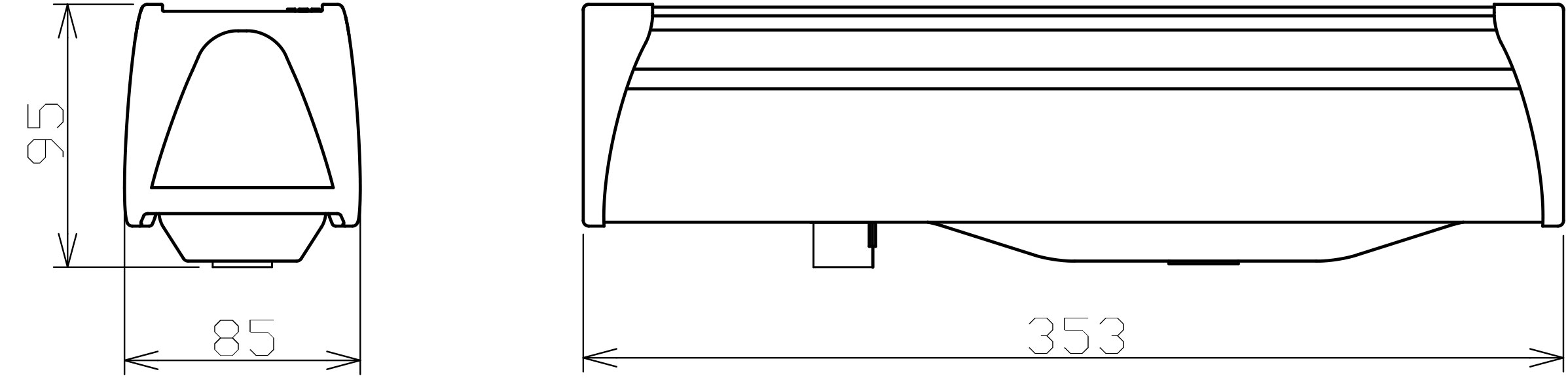

| Product Size |
|
 |
