SUL-DLN0203/Fixed
|
|
|
|
|
2 1/4" Fixed LED Downlight |
|
|
| Description |
|

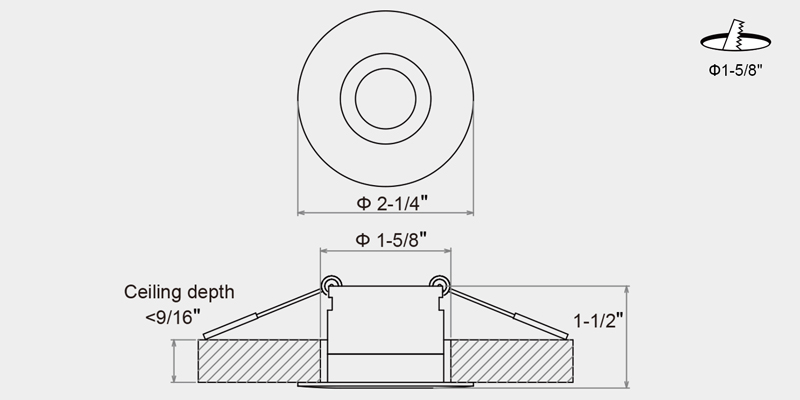

Dimension |
| APPLICATION: |
|
|
| Showcase,kitchen cabinet,restaurant millwork. |
|
| CONSTRUCTION: |
|
| Solid anodized aluminum,RoHS compliant. |
|
| MOUNTING: |
|
| Recessed mount to cabinet millwork with friction fit spring clips.Comes with 6'(1820mm) wire lead. |
|
|
|
|
| Performance Summary |
|
Application |
| Luminous flux @2700K: |
175lm |
|
|
|
| Luminous flux efficacy: |
70lm/W @2700K |
|
| CCT: |
2700K/3000K/4000K/5000K |
|
| Colour rendering index: |
90 |
|
| Lumen maintenance: |
>70% of initial lumens @50,000 hrs |
|
|
|
|
|
|
|
|
|
|
| System wattage: |
2.5Watt @700mA |
|
| Input voltage: |
DC700mA 3V |
|
| Power factor: |
1.0 |
|
|
|
| Dimming range: |
dimmable |
|
Installation |
| Electrical safety: |
class III |
|
|
| IP rating: |
IP40 |
|
|
|
|
|
|
|
|
|
|
| Dimensions: |
Φ2-1/4" x 1-1/2" |
|
| Cutout: |
Φ1-5/8" |
|
| Adjustable: |
fixed |
|
| Luminaire material: |
solid anodized aluminum |
|
| Finish: |
white/black |
|
| Packing size: |
430mm x 350mm x 150mm |
|
| Net weight: |
0.1Kg |
|
| Gross weight: |
11Kg |
|
| Pieces/carton: |
90pcs |
| |
